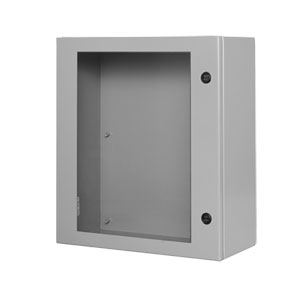

IP66 Electrical Enclosures with Viewing Window, in Carbon or Stainless Steel

SCE-ELJW Series Electrical Cabinet

IP66 Electrical enclosures with window - Order online | SCE-ELJW Series Electrical Cabinet

IP66 Electrical enclosures with window - Order online

€256,38 SCE-1008ELJW

ZUR BESTELLTABELLE
  • Electrical enclosures with window qith 1.6 mm Thick Carbon Steel, 304 & 316 Stainless Steel
  • 6.2 mm Thick Polycarbonate Window
  • Seams Continuously Welded and Ground Smooth
  • Flange Trough Collar Around All Sides of Door Opening with Oil-Resistant Gasket
  • Standoffs Provided for Mounting Optional Sub-Panels
  • Removable Pin Hinges
  • Black Mini-Quarter Turn Latches
  • Latches are Opened or Closed with a Screwdriver
  • Mounting feet, Sealing Washers and Hole Plugs Included
  • Earth Studs on Door and Body
Gehäuse und Schaltschränke - Verwandte Produkte anzeigen

Beschreibung


IP66 enclosures designed to house electrical controls, instruments and components that require unrestricted viewing of the gauges or controls in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water.

Finish
ANSI-61 grey powder coat inside and out. Optional Subpanels are powder coated white. The enclosure and sub-panels can be ordered in 316 stainless steel.

Industry Standards
NEMA Type 4 , 12 & 13
CSA Type 4 & 12
UL Type 4 & 12
IEC 60529 IP66

Enclosures Sub-Panels
Model Number Height (A)
mm		 Width (B)
mm		 Depth (C)
mm		 Viewing Window Model Number Height (D)
mm		 Width (E)
mm
Height
mm		 Width
mm
SCE-1008ELJW 254 203 102 197 95 SCE-10P8J 234 184
SCE-10086ELJW 254 203 153 197 95 SCE-10P8J 234 184
SCE-1210ELJW 305 254 153 248 146 SCE-12P10J 286 235
SCE-12108ELJW 305 254 203 248 146 SCE-12P10J 286 235
SCE-1614ELJW 406 356 153 349 248 SCE-16P14J 387 337
SCE-16148ELJW 406 356 203 349 248 SCE-16P14J 387 337
SCE-20208ELJW 508 508 203 451 400 SCE-20P20J 489 489

Electrical enclosure and sub-panel dimensions

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.
Stk
Beschreibung
Carbon Steel Grey Powder-Coated Enclosures and Optional White Powder Coated Sub-panels

SCE-1008ELJW
€256,38
Lieferzeit: 3 Wochen

254H x 203W x 102D enclosure with 197 x 95 viewing window

SCE-10086ELJW
€252,85
Lieferzeit: 3 Wochen

254H x 203W x 153D enclosure with 197 x 95 viewing window

SCE-10P8J
Consult Sales
Lieferzeit:


Sub-panel for 254 x 203 enclosures


SCE-1210ELJW
€318,90
Lieferzeit: 3 Wochen

305H x 254W x 153D enclosure with 248 x 146 viewing window

SCE-12108ELJW
€324,31
Lieferzeit: 3 Wochen

305H x 254W x 203D enclosure with 248 x 146 viewing window

SCE-12P10J
Consult Sales
Lieferzeit:


Sub-panel for 305 x 254 enclosures


SCE-1614ELJW
€444,37
Lieferzeit: 3 Wochen

406H x 356W x 153D enclosure with 349 x 248 viewing window

SCE-16148ELJW
€472,25
Lieferzeit: 3 Wochen

406H x 356W x 203D enclosure with 349 x 248 viewing window
Click to expand/minimize a list of what others bought with theSCE-16P14J
SCE-16P14J
€47,13
Lieferzeit: 3 Wochen

Sub-panel for 406 x 356 enclosures


SCE-20208ELJW
€541,95
Lieferzeit: 3 Wochen

508H x 508W x 203D enclosure with 451 x 400 viewing window

SCE-20P20J
€85,74
Lieferzeit: 3 Wochen

Sub-panel for 508 x 508 enclosures

304 Stainless Steel Enclosures and Optional White Powder Coated Sub-panels

SCE-1008ELJWSS
€652,56
Lieferzeit: 3 Wochen

254H x 203W x 102D 304SS enclosure with 197 x 95 viewing window

SCE-10086ELJWSS
€678,32
Lieferzeit: 3 Wochen

254H x 203W x 153D 304SS enclosure with 197 x 95 viewing window

SCE-10P8J
Consult Sales
Lieferzeit:


Sub-panel for 254 x 203 enclosures


SCE-1210ELJWSS
€751,68
Lieferzeit: 3 Wochen

305H x 254W x 153D 304SS enclosure with 248 x 146 viewing window

SCE-12108ELJWSS
€769,96
Lieferzeit: 3 Wochen

305H x 254W x 203D 304SS enclosure with 248 x 146 viewing window

SCE-12P10J
Consult Sales
Lieferzeit:


Sub-panel for 305 x 254 enclosures


SCE-1614ELJWSS
€969,78
Lieferzeit: 3 Wochen

406H x 356W x 153D 304SS enclosure with 349 x 248 viewing window

SCE-16148ELJWSS
€1.034,81
Lieferzeit: 3 Wochen

406H x 356W x 203D 304SS enclosure with 349 x 248 viewing window
Click to expand/minimize a list of what others bought with theSCE-16P14J
SCE-16P14J
€47,13
Lieferzeit: 3 Wochen

Sub-panel for 406 x 356 enclosures

316 Stainless Steel Enclosures and Optional White Powder Coated Sub-panels

SCE-1008ELJWSS6
€772,78
Lieferzeit: 3 Wochen

254H x 203W x 102D 316SS enclosure with 197 x 95 viewing window

SCE-10086ELJWSS6
€834,09
Lieferzeit: 3 Wochen

254H x 203W x 153D 316SS enclosure with 197 x 95 viewing window

SCE-10P8J
Consult Sales
Lieferzeit:


Sub-panel for 254 x 203 enclosures


SCE-1210ELJWSS6
€889,11
Lieferzeit: 4 Wochen

305H x 254W x 153D 316SS enclosure with 248 x 146 viewing window

SCE-12108ELJWSS6
€907,45
Lieferzeit: 3 Wochen

305H x 254W x 203D 316SS enclosure with 248 x 146 viewing window

SCE-12P10J
Consult Sales
Lieferzeit:


Sub-panel for 305 x 254 enclosures


SCE-1614ELJWSS6
€1.201,00
Lieferzeit: 3 Wochen

406H x 356W x 153D 316SS enclosure with 349 x 248 viewing window

SCE-16148ELJWSS6
€1.275,00
Lieferzeit: 3 Wochen

406H x 356W x 203D 316SS enclosure with 349 x 248 viewing window
Click to expand/minimize a list of what others bought with theSCE-16P14J
SCE-16P14J
€47,13
Lieferzeit: 3 Wochen

Sub-panel for 406 x 356 enclosures

Pre-cut 35x7.5 mm DIN Rail - Lengths are Cut to Match Width of Sub-panels

DRTB-RAIL-8
€9,12
Lieferzeit: 1 Woche

Pre-cut DIN rail for 200mm wide enclosure, actual width 170mm

DRTB-RAIL-10
€10,36
Lieferzeit: 1 Woche

Pre-cut DIN rail for 250mm wide enclosure, actual width 222mm

DRTB-RAIL-12
€10,87
Lieferzeit: 1 Woche

Pre-cut DIN rail for 305mm wide enclosure, actual width 273mm

DRTB-RAIL-14/16
€12,40
Lieferzeit: 1 Woche

Pre-cut DIN rail for 356mm wide enclosure, actual width 324mm

DRTB-RAIL-20
€10,66
Lieferzeit: 1 Woche

Pre-cut DIN rail for 508mm wide enclosure, actual width 425mm
Dead Front Panel Kits, includes panel and hardware

SCE-DFJ1008
€105,79
Lieferzeit: 3 Wochen

Front panel kit for 254x203 enclosure

SCE-DFJ1210
€105,85
Lieferzeit: 1 Woche

Front panel kit for 305x254 enclosure

SCE-DFJ1212
€117,33
Lieferzeit: 3 Wochen

Front panel kit for 305x305 enclosure

SCE-DFJ1614
€129,43
Lieferzeit: 3 Wochen

Front panel kit for 406x356 enclosure
Drip Shield Kit - includes stainless steel screws and sealing washers

SCE-DS12N4
€82,89
Lieferzeit: 3 Wochen

for 305mm wide electrical enclosures

SCE-DS16N4
€95,25
Lieferzeit: 3 Wochen

for 406mm wide electrical enclosures

SCE-DS20N4
€99,87
Lieferzeit: 3 Wochen

for 508mm wide electrical enclosures
Mini ¼ Turn Door Latches for Additional Security and Easy Access

SCE-MINIQLB
€78,00
Lieferzeit: 3 Wochen

Black Non-locking Lever Knob

SCE-MINIQKLB
€123,03
Lieferzeit: 1 Woche

Black Key Locking Lever Knob

SCE-MINIQ6MS
€93,81
Lieferzeit: 1 Woche

Black 6mm Square with Hand Key (large)
Mounting Foot Kits in Zinc Plated or Stainless Steel

SCE-ELJMFK
€59,96
Lieferzeit: 3 Wochen

4 mounts and fasteners per kit.

SCE-ELJMFKSS
€107,07
Lieferzeit: 3 Wochen

4 mounts and fasteners per kit. 304SS
*Alle Preisangaben in Euro.
 Ordering Example: (1) SCE-10086ELJW IP66 Electrical enclosure with viewing window, €252,85
