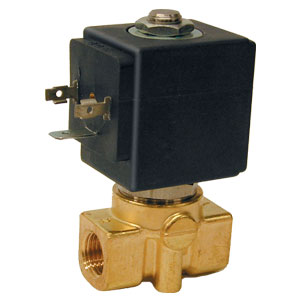

OMEGA-FLO 2-WAY HIGH PRESSURE SOLENOID Valves

SV3321 Series

^€157,55 SV3321

ZUR BESTELLTABELLE

Ideal for Compressed Air, Inert Gas, Water and Synthetic Oils
Maximum Pressure 1450 psi (100 bar)
Process Temperature to 182°C (360°F)
8 W, AC Coils Standard, 12 Coil Available

Ventile - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about Solenoid valve.

SV-3321 Series 2-way solenoid valves are high pressure directacting valves featuring brass, stainless steel construction and PTFE seal material. The temperature range from -23 to 182°C (-10 to 360°F) is ideal for neutral media such as compressed air, inert gases, water, and synthetic oils. A strain-relief connector is supplied with each unit. A ½" conduit plug is also available.

SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
Maximum Process Temperature: 182°C (360°F)
Maximum Ambient Temperature: Coil dependent (See ratings on coils)
Voltage Tolerance: ±10%
Opening Time (msec): @ 10 to 20
Closing Time (msec): @ 20 to 30
Cycling Rate: Approximately 1000 cpm
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F): SV8COIL-115AC
Black Polyamide (Class F): SV12COIL-120/60Hz

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

SV3321

€157,55

Lieferzeit: 4 Wochen

Pipe Size¹/4", Orifice Size ³/64", Cv flow facter 0.07, Coil Watts 8W/12, Min psi 0, Max Operating psi differential; AC 1450, DC 1300 1450

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with operator’s manual, 8 W coil and cable grip connector.
