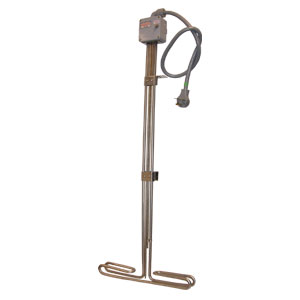

Tank Immersion Heaters General Purpose Tank or Reservoir Water

TAT400

NOT FOR EXPORT TO CANADA
Immersion Section of Heater Made of 316 Stainless Steel
Cold Riser Extends to the Top of Container Where Control Housing is Located
Cord Set with 3-Wire Grounding Plug is Included for Easy Installation and Wiring
Adjustable Vapor-Proof Thermostat Control with Temperature Range of 13 to 46ºC (55 to 115°F) (±3°)
Hi-Limit Cut Switch Set to 52ºC (125°F) (±4°)
Stainless Steel Mounting Bracket Also Supplied for Easy Mounting
Pilot Light and On-Off Switch Provided

Tauchheizkörper - Verwandte Produkte anzeigen

Beschreibung

Hi-Limit If the thermostat should fail and its contacts stick in a closed position, the heating element will continue to heat to about 52ºC (125°F). At this temperature the Hi-Limit will open and turn the heating element off. After repairing or replacing the thermostat the Hi-Limit can be manually reset.

Model No.		Sheath	Watt Density watt/in²	Watts	Volts	A		B
1.2 m (4') Cord	1.8 m (6') Cord	Sheath	Watt Density watt/in²	Watts	Volts	mm	inch	mm	inch
TAT40012	TAT40017	316 Stainless (Bright Annealed)	51	6000	240	1010	39.75	445	17.5
TAT40016	TAT40013	316 Stainless (Bright Annealed)	13	1440	120	1010	39.75	445	17.5
Comes complete with cord set and 3-wire grounding plug. Ordering Example: TAT40017, 6000 watts immersion heater, 240 Vac.

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

1.2m (4 Foot) cord

TAT40016

Consult Sales

Lieferzeit:

Sheath; 316 Stainless (bright annealed), 1440 Watts, 120 Volts

1.8m (6 Foot) cord

Bestellung nach Modellnummer

Artikelnummer

Stk

Artikelnummer

Stk

*Alle Preisangaben in Euro.
Anmerkung: Comes complete with cord set and 3-wire grounding plug.
Ordering Example: (1) TAT40017 Sheath; 316 Stainless (bright annealed), 6000 Watts, 240 Volts, €1.008,00
