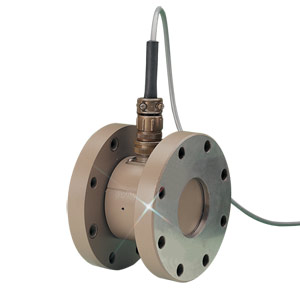

Flange Mounted Reaction Torque Sensors, 0 to 10 IN-LB to 0 to 100,000 IN-LB

TQ101

Flange Mounted Reaction Torque Sensors, 0 to 10 IN-LB to 0 to 100,000 IN-LB | TQ101

3.645,00 TQ101-100

  • Ideal for Monitoring Torque in Motor Pump and Machine Mounts
  • Flange Mounted for Easy Installation
  • Measures Torque in Clockwise and Counterclockwise Directions
Last- und Wägezellen, Kraft- und Drehmomentaufnehmer - Verwandte Produkte anzeigen

Beschreibung

TQ101 Series reaction torque sensors are ideal for measuring reaction or restraining torques found in motor mounts, pump mounts, machine mounts, etc. They can also be used in limited rotation applications, such as measuring the torque required to turn a nut or an actuator shaft. The TQ101 is designed with flanges, enabling easy installation or adaptation; it is rugged enough for factory use, yet accurate enough for the laboratory.

SPECIFICATIONS
Rated Output: 2.0 mV/V nominal
Excitation: 10 Vdc, 20 Vdc maximum
Accuracy: ±0.18% FS
Linearity: ±0.10% FS
Hysteresis: ±0.10% FS
Repeatability: ±0.10% FS
Zero Balance: ±1.0% FS
Operating Temperature Range: -65 to 250°F (-53 to 120°C)
Compensated Temp. Range: 32 to 170°F (0 to 76°C)
Thermal Effects: Zero ±0.002% FS/°F Span ±0.002% Rdg/°F
Max. Load: Safe: 150% FS Ultimate: 300% FS
Bridge Resistance: 350 Ohms nominal
Full Scale Angular Deflection: 1.2°
Construction: Nickel plated steel Sensing Element: Aluminum (up to 500 in-lb), nickel plated steel (above 500 in-lb) Cover: Aluminum (100, 200 and 500 in-lb) and nickel-plated steel (all other ranges)
Electrical: Mating connector supplied
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
TQ101-10
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 10 in-lb range
TQ101-20
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 20 in-lb range
TQ101-50
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 50 in-lb range
TQ101-100
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 100 in-lb range
TQ101-200
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 200 in-lb range
TQ101-500
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 500 in-lb range
TQ101-1K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 1, 000 in-lb range
TQ101-2K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 2, 000 in-lb range
TQ101-5K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 5, 000 in-lb range
TQ101-10K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 10, 000 in-lb range
TQ101-15K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 15, 000 in-lb range
TQ101-20K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 20, 000 in-lb range
TQ101-50K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 50, 000 in-lb range
TQ101-100K
Consult Sales
Lieferzeit:


Flange mount reaction torque sensor with +/- 100, 000 in-lb range
*Alle Preisangaben in Euro.
