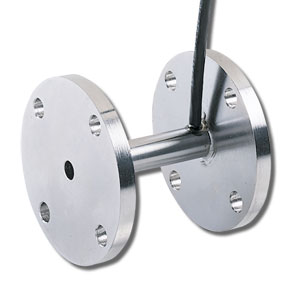

Reaction Torque Cells, Flange to Flange Mount

TQ301

Reaction Torque Cells, Flange to Flange Mount | TQ301

Reaction Torque Cells, Flange to Flange Mount

€875,75 TQ301-400

ZUR BESTELLTABELLE
CE
  • All Stainless Steel Case for Long Term Reliability in Industrial Environments
  • High Accuracy
  • Shielded Cable for Precise Low Noise Measurements
  • Heavy Duty Mounting for Positive, Non-Slip Connection
Last- und Wägezellen, Kraft- und Drehmomentaufnehmer - Verwandte Produkte anzeigen

Beschreibung

SPECIFICATIONS
Output: 2 mV/V
Excitation: 10 Vdc, 15 V max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
AccuracyClass: ±0.2% FSO
Linearity, Hysteresis, and Repeatability: ±0.2% FSO Combined
Zero Balance: ±2% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: 4 ft (1.2 m) 4-conductor shielded PVC cable color coded
Bestellangaben (Bitte Modellnummer angeben)
Artikelnummer/Beschr.
Stk
Beschreibung
TQ301-400
€875,75
Lieferzeit: 7 Wochen

Flange mounted reaction torque sensor with +/- 400 in-lb range
*Alle Preisangaben in Euro.
