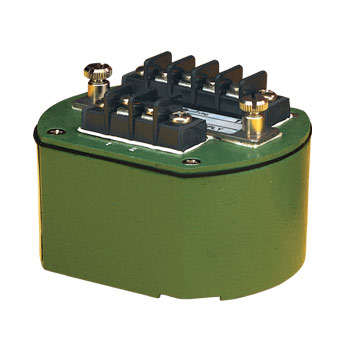

Field Programmable Transmitters

TX70 Series

This series is not CE marked and therefore not available in Europe. Please review our range of transmitters here or contact our sales department for an alternative.
2-Wire Transmitters for Thermocouples and RTD’s
Provides 600 Vdc or peak ac Input to Output Isolation
Zero and Span Adjustability within User-selected Input Range
4 to 20 mA or 10 to 50 mA output signal

Beschreibung

The TX70 Series 2-Wire Transmitters for thermocouples and RTD’s feature dip switch selection for input type and range. With the thermocouple models, the user may select from J, K or T input with one model, or E, R or S with another. All models feature 80% zero and span adjustability within any user-selected input range. Models are available with any desired input, with either a 4 to 20 mA or 10 to 50 mA output signal.

Ranging Example: the 0 to 500°C range for a type K thermocouple and a minimum span of 100°C, the user may select any 100° span within that 0 to 500°C range, such as 14 to 114°C or 379 to 479°C. Note: 2-wire transmitters are linearized to the voltage signal produced by a thermocouple, and not to the actual temperature.

*Alle Preisangaben in Euro.
Anmerkung: This series is not CE marked and therefore not available in Europe. Please review our range of transmitters here or contact our sales department for an alternative.
