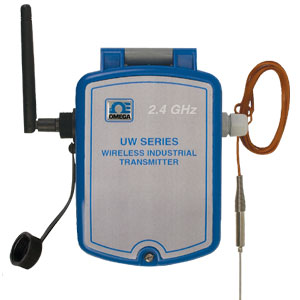

Weather Resistant Temperature-to-Wireless Transmitters For Thermocouples

UWTC-2A-NEMA Series

wireless thermocouple transmitter

^€596,11 UWTC-2A-NEMA

ZUR BESTELLTABELLE

Transmit Temperature Data Wirelessly to Your Computer or the Internet
Transmit up to 120 m (400')
Weather Resistant NEMA 4X (IP65) Enclosure
Software Selectable for 9 Thermocouple Input Types
Transmit Data in Real Time
Compatible with UWTC-REC Wireless Receivers
Low Power Operation and Sleep Mode

Drahtlose Sensoren, Messumformer, Empfänger, Anzeigen und Regler - Verwandte Produkte anzeigen

Beschreibung

Click on this link if you need more information about Wireless temperature sensor.

The new OMEGA™ weather resistant temperature-to-wireless transmitters are weather-resistant, battery-powered transmitters that transmit their readings back to a host receiver up to 120 m (400') away. UWTC units can be programmed for any of 9 thermocouple calibrations. The UWTC will transmit the measured and ambient temperatures, along with RF signal strength and battery condition to a remote host, such as the UWTC-REC Series. You can program the UWTC to transmit your data at rates from 2 sec to 2 min. Data received by the UWTC-REC can be received and displayed on your computer, using the TC Central software included with eachcompatible receiver. TC Central software can turn your PC into a strip chart recorder or data logger so readings can be saved and later printed or exported to a spreadsheet file.

Specifications
Available Thermocouple Input Types: J, K, T, E, R, S, B, C or N
Thermocouple Measurement Range:
    J: -100 to 760°C (-148 to 1400°F)
    K: -100 to 1260°C (-148 to 2300°F)
    T: -200 to 400°C (-328 to 752°F)
    E: -200 to 1000°C (-328 to 1832°F)
    R: 260 to 1760°C (500 to 3200°F)
    S: 260 to 1760°C (500 to 3200°F)
    B: 870 to 1820°C (1598 to 3308°F)
    C: 0 to 2315°C (32 to 4200°F)
    N: -100 to 1260°C (-148 to 2300°F)
Accuracy:
    J, K: ±0.5% of reading or ±1.0°C (1.8°F), whichever is greater
    T, E, N: ±0.5% of reading or ±2.0°C (3.6°F), whichever is greater
    R, S, B, C: ±0.5% of full scale
Resolution: 1°C/1°F
Cold Junction Compensation (Automatic): -10 to 70°C (14 to 158°F)
Sensor Connection: Internal connection block
Operating Environment: -10 to 70°C (14 to 158°F)
Transmit Sample Rate: Programmable from 2 sec to 2 min
Radio Frequency (RF) transceiver Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Output Power: 10 dBm (10 mW)
Range of RF Link:
    Outdoor Line of Sight: Up to 120 m (400')
    Indoor/urban: Up to 40 m (130’)
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Power: One 3.6V, lithium “C” cell battery (included)
Battery Life (Typical): 3 years at 1 sample/minute reading rate @ 25°C
Enclosure: NEMA 4X (IP65) Polycarbonate
Dimensions: 145.8 L x 94.7 W x 50.8 mm H (5.74 x 3.73 x 2")

Bestellangaben (Bitte Modellnummer angeben)

Das haben Andere außerdem gekauft: Wenn Sie auf dieses Symbol klicken, erhalten Sie eine Liste mit Produkten, die andere Kunden zusammen mit diesem Modell gekauft haben.

Artikelnummer/Beschr.

Stk

Beschreibung

UWTC-2A-NEMA

€596,11

Lieferzeit: 7 Wochen

Weather resistant thermocouple-to-wireless transmitter with NEMA enclosure

UWTC-REC1

€543,44

Lieferzeit: 7 Wochen

USB powered 48-channel transmitter receiver

Accessories

BATT-C-3.6V

€40,30

Lieferzeit: ab Lager

Replacement battery, C cell 3.6V lithium.

*Alle Preisangaben in Euro.
Anmerkung: Because of transmission frequency regulations, these products may only be used in the United States, Canada, Europe and China.

Comes complete with antenna, 3.6V “C” battery, and operator’s manual.
Please see PDF for additional receivers and accessories.
