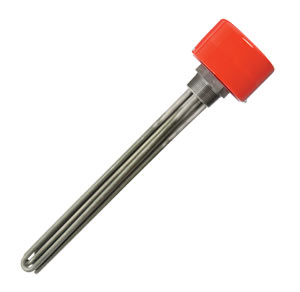

Field Adjustable Screw Plug Immersion Heater
Clean Water & Oil Applications

VTS Series

^€1.936,00 VTS-3180/240

2½" NPT Steel Screw Plug
Incoloy® Sheath Elements
Field Adjustable kW and Voltage Ratings
Integral Thermocouple. Type J
General Purpose Terminal Enclosure
Process Temperature
up to 148°C (300°F)

Beschreibung

Omegalux® field adjustable screw plug immersion heaters can be applied to a variety of clean water and oil applications. The unique versatility of this design allows field adjustment of the rating by simple connections to the six elements of the heater. This simplifies selection and spare parts since each heater may be used in several different heating applications. See the application matrix for the many kW values available with different wiring styles and voltages.

SPECIFICATIONS
Wattage: 0.5 to 40 kW - Water; 0.5 to 10 kW - Oil
Watt Density: 2 to 80 W/In² - Water; 2 to 23 W/In²- Oil
Power:
1 Phase: 120, 208, 240 and 480V
3 Phase: 208, 240 and 480V
Sheath: .430" diameter Incoloy
Screw Plug: 2½" Steel
Enclosure: General purpose, NEMA-1 rated enclosure can be rotated 360° to match conduit connections

Selection Example: Light oil heating application, 2.75 kW 240V 3-phase capacity

Select oil application matrix
Locate 2.75 kW on chart. Use 3 kW as next higher rating. Confirm that 20 w/sq. in. is suitable for light oil.
Find column with 240 Volt 3-phase power
Intersection of row and column is model number VTS-3240/480. Confirm 3-phase and single-phase available. Note there is spare capacity for back up or for future increase in requirements.
Locate model number VTS-3240/480 in the "To Order" table for price. When received, this heater will have instructions on wiring for the required rating. Contact Omega’s Application Engineers with any questions.

Application Matrix—Oil

Model No.
kW	W/In2	120 Volts 1 phase	208 Volts 1 or 3 phase	240 Volts 1 or 3 phase	480 Volts 1 or 3 phase
0.50	2			VTS-3240/480
0.75	5	VTS-3240/480*	VTS-3240/480*
1.50	5	VTS-3240/480	VTS-3240/480	VTS-3240/480	VTS-3180/480
2.25	15		VTS-3240/480*	VTS-3180/480*
2.50	6	VTS-3400/480	VTS-3400/480	VTS-3400/480
3.00	20	VTS-3240/240*	VTS-3240/240*	VTS-3240/480*
4.50	15	VTS-3180/240	VTS-3240/480	VTS-3180/480	VTS-3180/480
5.00	11	VTS-3200/240	VTS-3200/240	VTS-3200/240
6.00	20	VTS-3240/240	VTS-3240/240	VTS-3240/480	VTS-3240/480
10.00	21			VTS-3400/480	VTS-3400/480

Application Matrix—Water

Model No.
kW	W/In2	120 Volts 1 phase	208 Volts 1 or 3 phase	240 Volts 1 or 3 phase	480 Volts 1 or 3 phase
0.50	2			VTS-3240/480
0.75	5	VTS-3240/480*	VTS-3240/480*
1.50	5	VTS-3240/480	VTS-3240/480	VTS-3240/480	VTS-3180/480
2.25	15		VTS-3240/480*	VTS-3180/480*
2.50	6	VTS-3400/480	VTS-3400/480	VTS-3400/480
3.00	20	VTS-3240/240*	VTS-3240/240*	VTS-3240/480*
4.50	15	VTS-3180/240	VTS-3240/480	VTS-3180/480	VTS-3180/480
5.00	11	VTS-3200/240	VTS-3200/240	VTS-3200/240
6.00	20	VTS-3240/240	VTS-3240/240	VTS-3240/480	VTS-3240/480
9.00	59			VTS-3180/240*	VTS-3180/480*
10.00	21			VTS-3400/480	VTS-3400/480
12.00	78			VTS-3240/240*	VTS-3240/480*
18.00	59			VTS-3180/240	VTS-3180/480
20.00	80			VTS-3200/240	VTS-3400/480*
24.00	78			VTS-3240/240	VTS-3240/480
40.00	80				VTS-3400/480

Note: Shaded items are 3 phase only; *Items have 100% spare capacity

Bestellangaben (Bitte Modellnummer angeben)

Artikelnummer/Beschr.

Stk

Beschreibung

VTS-3180/240

€1.936,00

Lieferzeit: 6 Wochen
